Focuses on the research and development, manufacturing, and technical services of industrial cleaning equipment

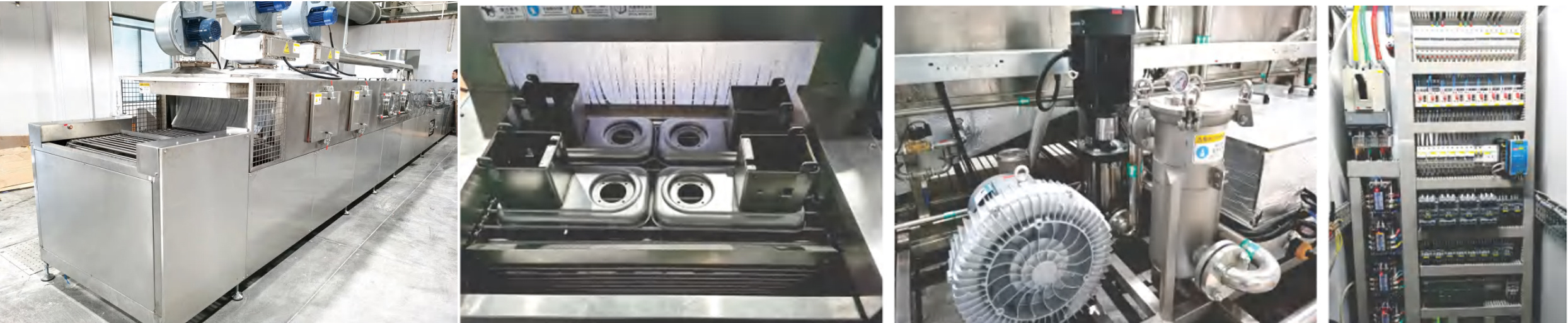

Automatic Pass-through Ultrasonic Cleaning Machine - Stamping Parts Cleaning Equipment
Key words:
Large single tank ultrasonic cleaning machine | Slider cleaning equipment | Precision guide rail cleaning equipment | Rotary spray cleaning machine
Product Classification:
Suitable for gears, shafts, and other workpieces with high cleanliness requirements
Ultrasonic cleaning, spray cleaning, spray rinsing, and hot air drying processes are completed in separate zones, improving production capacity
The loading and unloading of the ultrasonic cleaning station is automatically completed by a robotic arm
Workpieces can be continuously conveyed or step-conveyed (with optional point cleaning)
Main Technical Parameters
Equipment Parameters | SYK-WAH5100-L | SYK-WAH5100-L(Submersible Ultrasonic) |
|---|---|---|
Length*width*height | 3080*2600*3500(mm) | 6200*2500*2700(mm) |
Loading and Unloading Height (Approx.) | 950(mm) | 920mm |
Reservoir Capacity (Approx.) | Cleaning 630L Rinsing 530L | Cleaning 630L*2 Rinsing 530L |
Ultrasonic Frequency | 25/28/40(kHz) | 25/28/40(kHz) |
Cleaning Temperature | 50-70°C | 50-70°C |
Cleaning Pressure | 2-10(bar) | 2-10(bar) |
Average Operating Power (Approx.) | ≈80KW | ≈120KW |
