Focuses on the research and development, manufacturing, and technical services of industrial cleaning equipment

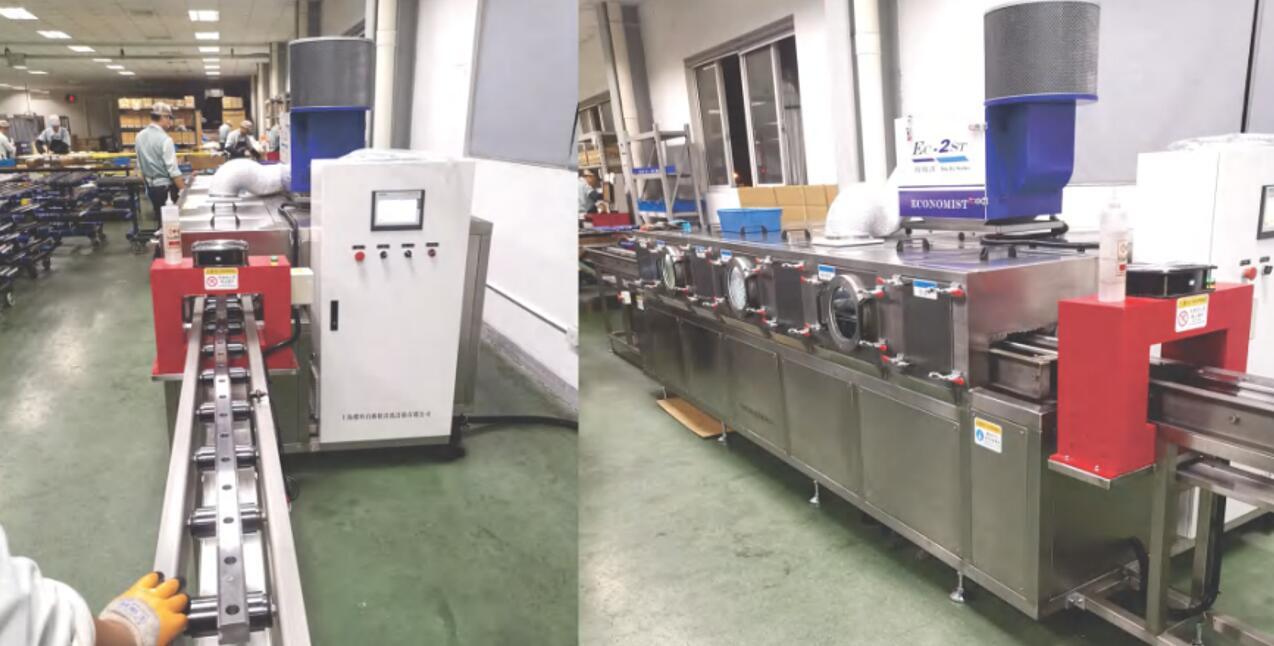

Guide rail assembly cleaning equipment
Key words:
Large single tank ultrasonic cleaning machine | Slider cleaning equipment | Precision guide rail cleaning equipment | Rotary spray cleaning machine
Product Classification:
● Suitable for guide rails, screw rods, and other workpieces with high cleanliness requirements
● Processes such as spray coarse cleaning, spray fine cleaning, spray rinsing, and water cutting drying are completed in separate process zones, improving production capacity to meet various guide rail cleaning requirements.
● Loading and unloading is accomplished via unpowered/powered rollers to complete the conveying and cleaning, and water cutting in the cleaning work station
● Workpieces can be continuously conveyed or step-fed (rust preventive oil spraying can be configured)
Main Technical Parameters
Equipment Parameters | SYK-TC2000 (Single-stage Cleaning) | SYK-TC5000 (Three-stage Cleaning) |
|---|---|---|
Length*width*height | 2900L*2000W*2500H | 7600*2100*1830 |
Loading and Unloading Height (Approx.) | 1500mm | 870(mm) |
Reservoir Capacity (Approx.) | 128(L) | 300L |
Ultrasonic Frequency | / | / |
Cleaning Temperature | 50-70°C | 50-70°C |
Cleaning Pressure | 3-10(bar) | 3-10(bar) |
Average Operating Power (Approx.) | ≈26KW | ≈43KW |
